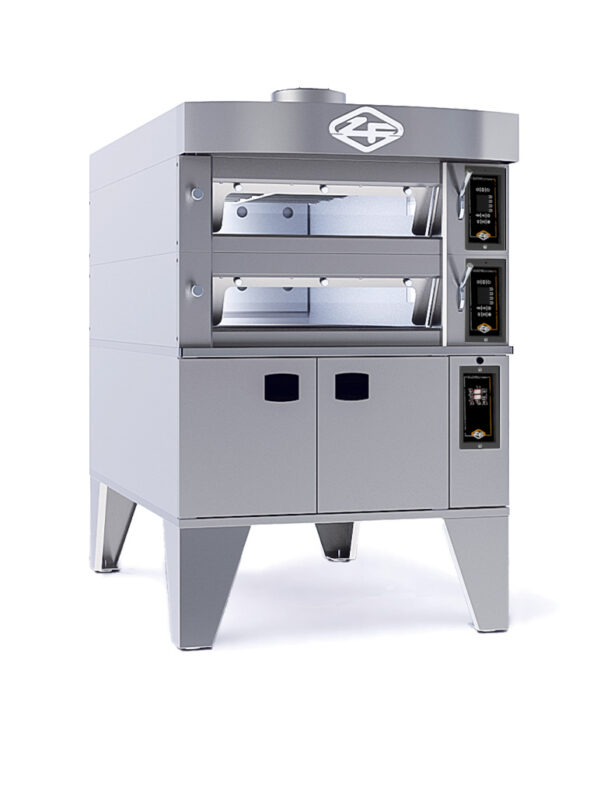

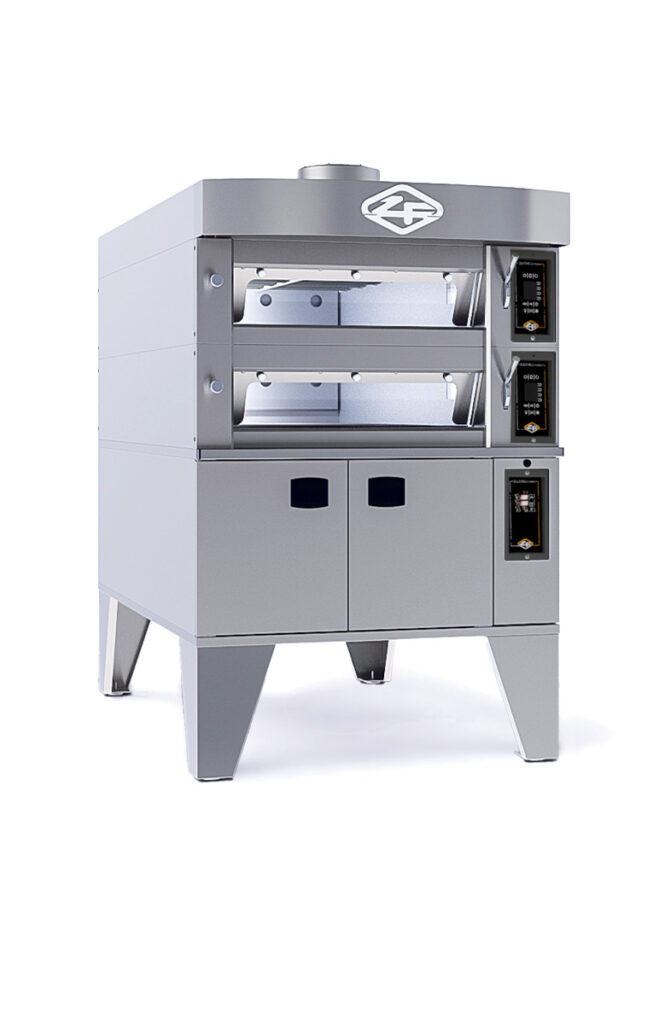

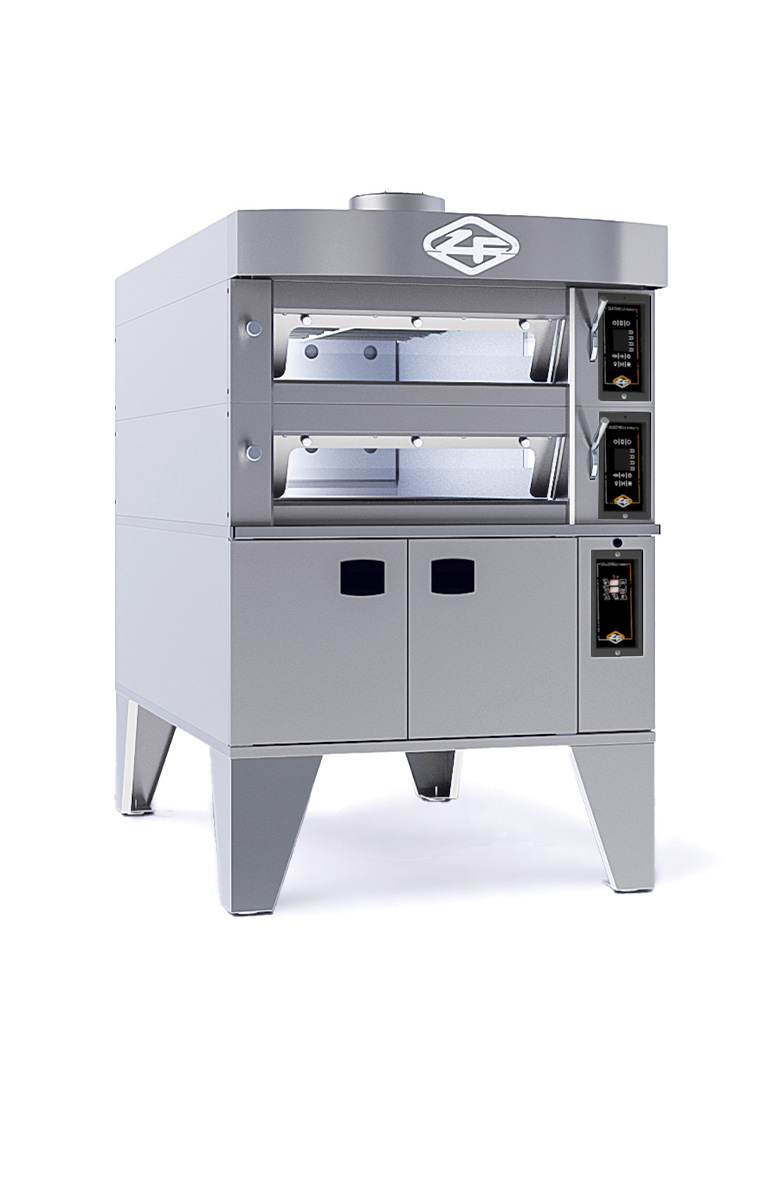

Modular 4T 40×60/46×66
STATIC MODULAR FIXED DECK OVEN
- for trays 40×60 or 46×66
- ELECTRICALLY powered
- capacity : nr.4 trays arranged in the chamber longitudinally (one behind the other)
COMPONIBLE :
The main feature of modular ovens is the possibility to re-configure their structure according to one’s needs.
To this end, it is possible to compose the oven using the following elements :
- Amount of decks installed (1 to 4)
- Internal height of the chambers (18 or 23 cm)
- A proofer or an closed trays support
- A motorized or non-motorized steam suction fan
- A steamer for one or more chambers
Modular 4T 40×60/46×66
Static 4-tray 40×60 or 46×66 baking chamber.
– Electric operation
– Totally independent.
The chamber comes complete with:
” Fiberglass refractory baking tiles
” High-efficiency armored heating elements
” Electronic digital microprocessor controller
” Economizer and programmable ignition
” Manual valve for excess steam exhaust
” Stainless steel front
” Tempered glass doors
| 4T 40×60 | 4T 46×66 | |
|---|---|---|
| electric power (kw) | 8.4 | 12.4 |
| width (cm) | 120 | 132 |
| depth (cm) | 167 | 179 |
| weight (kg) | 170 | 200 |
| internal width (cm) | 82 | 94 |
| internal depth (cm) | 122 | 135 |
| baking surface (m²) | 1 | 1.3 |
| number of trays | 4 | 4 |
| chamber H.18 height (cm) | 32 | 32 |
| chamber H.18 internal height (cm) | 18 | 18 |
| chamber H.23 height (cm) | 37 | 37 |
| chamber H.23 internal height (cm) | 23 | 23 |
Possible combinations
Proofer / closed support
Proofer for 40×60 or 46×66 trays.
– Stainless steel frame
– Oven-indipendent
– Digital temperature controller.
– SEMI-AUTOMATIC humidification system (water loading must be done manually by an operator).
Upon request, it is possible to make the proofer without any heating or humidification system (in this case, it will only have the function of a tray compartment)
| 4T 40×60 | 4T 46×66 | |
|---|---|---|
| electric power (kw) | 1 | 1 |
| width (cm) | 120 | 132 |
| depth (cm) | 167 | 179 |
| weight (kg) | 130 | 150 |
| height (cm) | 60 | 60 |
| number of trays | 24 | 24 |
| trays distance (cm) | 7.5 | 7.5 |
Open support
Open stand for 40×60 or 46×66 trays .
The structure, made entirely of stainless steel, allows 6 to 18 40×60 or 46×66 baking trays to be laid with ease. In addition, the structure is easy to clean and maintain, as well as adding a touch of sturdiness to the oven.
| 4T 40×60 | 4T 46×66 | |
|---|---|---|
| width (cm) | 120 | 132 |
| depth (cm) | 167 | 179 |
| weight (kg) | 83 | 90 |
| height (cm) | 60 | 60 |
| number of trays | 18 | 18 |
| trays distance (cm) | 7.5 | 7.5 |
Hood
The hood is the terminal element of the oven and has the task of collecting and channeling the baking process.
The hood is supplied complete with:
– stainless steel steam collection box
– stainless steel front sheet
– cover panels (side and back)
Upon request, it is possible to force the suction of vapors by installing a motorized suction fan on the hood.
| 4T 40×60 | 4T 46×66 | |
|---|---|---|
| electric power (kw) | 0.1 | 0.1 |
| width (cm) | 120 | 132 |
| depth (cm) | 182 | 194 |
| height (cm) | 17 | 17 |
| weight (kg) | 30 | 35 |
Humidifier
” New oversized humidifier for abundant steam supply
” High-performance, oven-independent armored heating elements
” Automatic water loading
” Thermostat for temperature control
The humidification unit is installed in the right chamber compartment.
Placing the humidifier outside the chamber offers several advantages :
– in case of service or cleaning, the humidifier is easily accessible
– the temperature of the humidifier does not affect the baking of the product
– installation/replacement operations are extremely easy
| electric power for single chamber (kw) | 0.8 |
|---|---|
| width (cm) | 14 |
| depth (cm) | 73 |
| height (cm) | 17 |
| weight (kg) | 35 |
Configuration examples

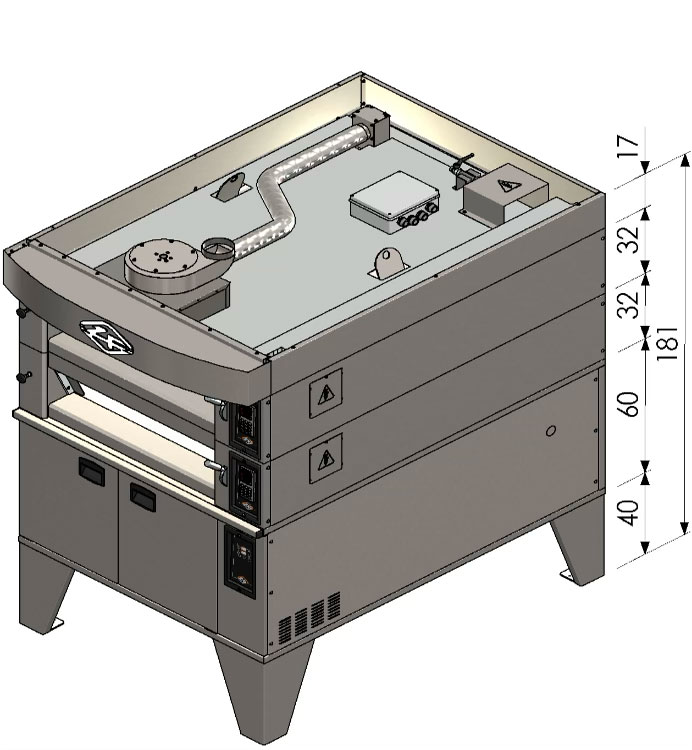

- Motorized extractor hood
- Deck with internal height 18 cm
- Deck with internal height 18 cm
- Cell H.60
- Foot h.40

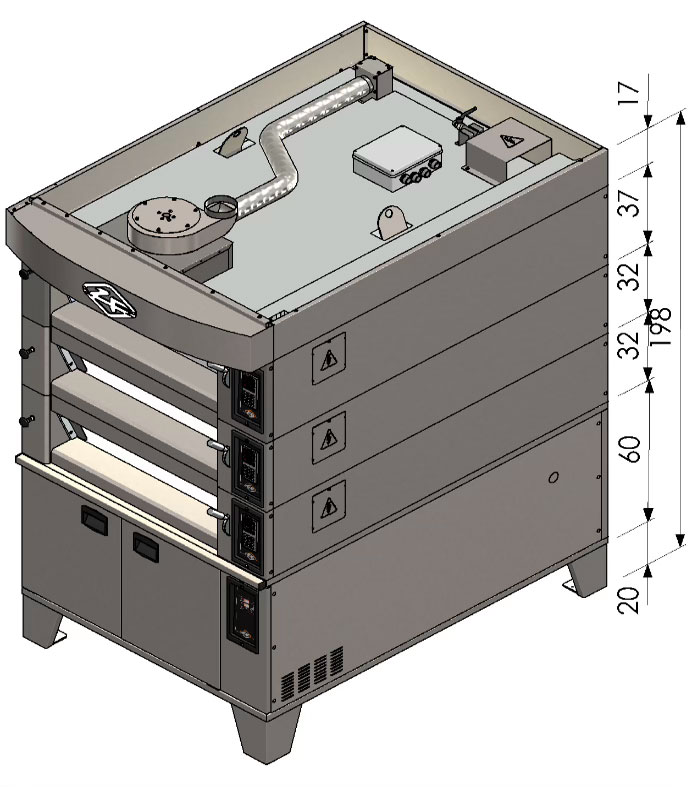

- Motorized extractor hood
- Deck with internal height 23 cm
- Deck with internal height 18 cm
- Deck with internal height 18 cm
- Cell H.60
- Foot h.20
Accessories
Optionals
Single-phase power supply
In the standard version, the oven is arranged to be powered at a three-phase voltage of 230V or 400V (value to be specified when ordering).
However, upon request, it is possible to supply the oven with a SINGLE-PHASE voltage of 230V. The frequency of the supply voltage can be either 50 or 60 Hz.
Steam extractor fan
| THE OVEN MUST BE OBLIGATELY FITTED WITH A HOOD. The hood in the standard version is supplied without an extractor fan. Upon request, the oven can be made complete with an extractor hood. The extractor nut is always made of STAINLESS STEEL. |
Humidifier
If required, the oven can be supplied complete with a humidifier.
The high steam production generated by the new humidifier also makes this oven suitable for baking.
THE HUMIDIFIER IS PLACED UNDER THE OVEN THAT MUST , BY CONSEQUENCE, ALWAYS BE PROVIDED WITH A CELL.
